Aluminium In Construction

The Guttermaster product and guttering services represents the highest possible standard in the design and manufacture of stylish aluminium guttering, rainwater pipes and fascia soffit systems.

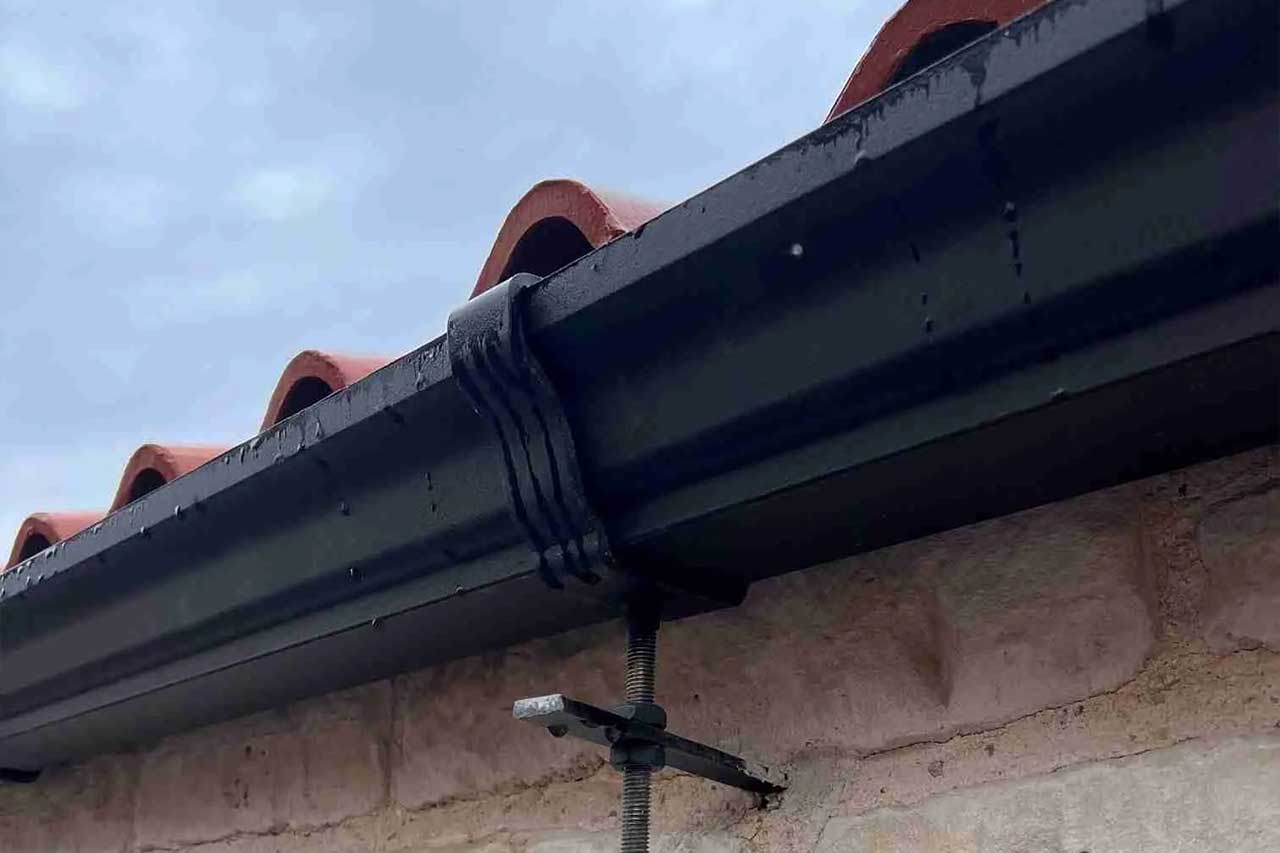

CAST Moulded 46 Guttering

The high capacity cast moulded profile is cast from 3.0mm thick cast aluminium, producing an extremely strong, rigid gutter which far exceeds all the relevant British Standards. The hydraulic performance of the moulded profile is advanced with a cast joint, allowing maximum unbroken flow. The cast process allows the use of the high strength 6063 T6 and permits gutters to be produced with the finest straightness tolerences available.

Different sizes are available:

Cast Moulded Gutter Sizes


View Guttermaster colour chart

The Guttermaster aluminium range is available Polyester powder coated to outside surfaces in strict accordance with BS6496.  Colours available are standard ‘RAL’, ‘BS4800’ or ‘Syntha Pulvin’ reference.

We also offer a wide range of alternative finishes including heritage textured finish, metallic, anodised coating, aswell as made to order special colours and finishes.

Product Information

Download free Adobe PDF Reader

The following links will open the Product Information Sheets in a separate window, they can then be saved to your computer.

Cast Moulded.pdf (coming soon)

Revit BIM Files

Download free Autodesk Viewer

To download this BIM file to your computer, click on the link(s) below. BIM files are stored in Revit formats and are available in Lite and Detailed layouts. User Guides are PDF.

Download Cast Moulded Gutter System Revit Files (coming soon)


  • High flow capacity.
  • Allows a reduction in the number of rainwater pipes.
  • All brackets have wind restraint lips to prevent uplift.
  • Joints incorporate spacers as part of the manufacturing process.  This ensures a 2mm sealant bed is maintained in the joint even if the bolts are over-tightened.  This allows the gutter to expand and contract freely without leakage.
  • The leg feature on brackets and union joints provides support in the severest of conditions, especially at joint positions.


View latest test results

Can be used as a direct replacement for cast iron on refurbishment or on new build.

Creates traditional appearance on new buildings.

Range of size and capacity to satisfy most building requirements.

AutoCAD Profiles

Download free Autodesk DWG TrueView

To download this profile to your computer, click on the link below the image. Select “Open” and choose a path to save the file.

(coming soon)
